GIRIRAJ FILTERS MARKETING PVT. LTD

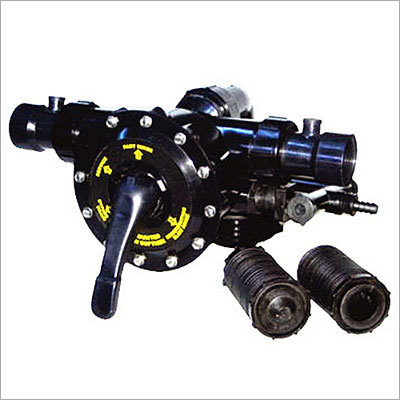

Multi-Port Valve For Softeners Filters

Multi-Port Valve For Softeners Filters
Multi-Port Valve For Softeners Filters
Product Code : 12
Product Description
Multi-Port Valve For Softeners Filters

Features
  • All valves in ABS material of construction
  • Available in sizes of 20nb, 25nb and 40 nb
  • Available in top mount and side mount models for all sizes
  • Available for upflow or downflow filters/softener
  • All top mount type valves supplied with top and bottom strainers and suitable adaptors to fit either 2 1/2" or 4" opening vessels
  • In-out adaptors with top and bottom strainers available
  • Brine directors for softener valves available.
Technical Specifications of 40 NB Size
  • Max Flow Rate: 14m3/hr @ 0.5 kg/cm2 pressure drop
  • End Connections: 1 1/2" BSP [f] [flanged connections also available]
  • Press Gauge Sampling Points: 1/4" BSP [f]
  • Max Operating Pressure: 5 Kg/cm2
  • Regenerate Suction Tubing size: 1/2"
  • Injector Ratio: 1:1
  • Injector Suction Rate: 1000 lph @ 3kg/cm2
  • 500 lph @ 3kg/cm2
  • Min Prss for Uniform Suction: 3kg/cm2
  • Riser Pipe Size (Top Mount models only): 32mm OD PVC
  • Ejector Connections: 1/2" BSP (F)
  • Drain: 2" Hose Elbow
  • Valve Connection to Vessel (Top Mount Vessel only): 2.5 NPT(M) or 4" NPT(M)
Technical Specifications of 25 NB Size
  • Max Flow Rate: 5m3/Hr @ 0.5 Kg/cm2 Pressure Drop
  • End Connection: 1"BSP (F) Union's With Pressure Gauge Sampling, Points of Size 1/4"BSP (F).
  • Max Operating Press: 5kg/cm2
  • Regenerate Suction Tubing Size: 0.5"
  • Riser Pipe Size (Top Mount Models): 32mm OD PVC Pipe
  • Ejector Type: In-built
  • Injector Ratio 1:1
  • Drain Connections: 1.5" Hose Elbow
  • Valve Connection to Vessel (Top Mount Models): 2.5" NPT (M) or 4" NPT (M)
  • Min Press for Uniform Suction: 3 Kg/cm2
Technical Specifications of 20 NB Size
  • Max Flow Rate: 2000 lph @ 0.5 Kg/cm2
  • Valve Connection to Vessel: 2.5 NPT (M)
  • Riser Pipe Size: 25mm OD PVC Pipe
  • Inlet, Ourlet, Drain Connections: 3/4" BSP (F) Quick Release Coupling Elbow/Straight Adaptor
  • Regenerate Tubling Size: 1/4"
  • Ejector Type: In-built
  • Injector Ratio: 1:2 Powar Water : Suction flow
  • Max Operating Press: 5 Kg/cm2
  • Min Press for Uniform Section: 2 Kg/cm2
