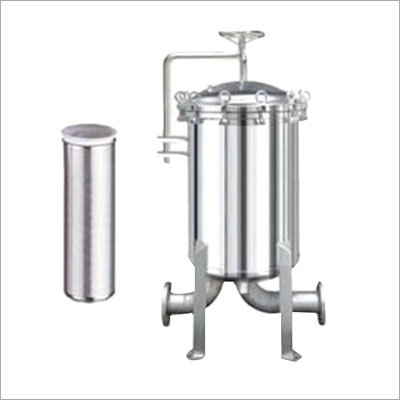

Bag Filter System
We are engaged in offering our clients Bag Filter System that provides solution of fluid applications in the process industry. Bag Filter System available with us is used for filtering viscosity liquids in large volumes. These are designed using Filter Housing, Filter Bags, Internal cage to support Bags, Positive sealing arrangement, & choice of end connections. Furthermore, these are incorporated with the internal support ensuring the safe usage of the system.
Features and Benefits:
- Low maintenance & easy to operate
- ASME code stamp available
- Multiple Bag Filter / Duplex Bag Filter /Jacketed Bag filter Unit designs are available
- High Temperature & High Pressure Design are available
- Special Option Include Filter Bag Hold-Down Devices, Sanitary, Construction Different Outlet Connections, Higher Pressure Ratings, Extra- Length Legs, Heat Jacketing, and Adapters for Holding Filter Bags.
- Large-Area, Heavy-Duty Baskets
- Housings are permanently piped
- Covers Are O-Ring Sealed
- All Housings Made from SS 316 L , SS 316 & SS304 Are Mirror polished to Resist Adhesion of Dirt and Scale
- Flow rates are very high
- Suitable for PP Collar, Rigid Ring & Snap Band Bags
- Low pressure drop
- High dirt holding capacity
- Low down time
- Flow rate up to 2000 m3/hr
- Custom design services
- Carbon Steel Housing are painted coated externally & internally epoxy coated
- Positive sealing arrangement to avoid bypassing
- Quick opening tri clovers & fly nut design
Technical Specifications:
- Material of construction: SS 316L, SS 316, SS 304, carbon steel (All Grade), mild steel, alloy metals, polypropylene, lead lining, rubber lining, teflon lining
- Sizes Bag Filter System Suitable for: "4" x 10" Long Filter Bag, "4" x 17" Long Filter Bag, "7" x 17" Long Filter Bag, " 7" x 32" Long Filter Bag, Flow Rate
- 3 Capacity: Up to 2000 m /hr
- Gasket / O Ring Material: Neoprene, Nitrile, Silicone, Viton, Buna N, EPDM, PTFE
- Multiple Bag Filter System Suitable for: 3 Nos. Of " 7" x 32" Long Filter Bag, 4 Nos. Of " 7" x 32" Long Filter Bag, 5 Nos. Of "7" x 32" Long Filter Bag, 7 Nos. Of "7" x 32" Long Filter Bag, 9 Nos. Of " 7" x 32" Long Filter Bag
- Bag Filter Suitable for Bag Configuration: PP Collar Bag, Rubber Collar Bag, Snap Band Bag, Rigid Ring Bag, Flange Collar Bag, End Connections Available, NPT / BSP Threaded, Flanged Table E / Table F, ANSI B 16.5, ASA 150 # RF, DIN Standard, Tri Clover Adaptors, SMS /Dairy End Connection
Applications:
- Cutting Oils
- Varnishes
- Lacquers
- Paints
- Petroleum Derivatives
- Processing Chemicals
- Inks
- Resins
- Coolants
|
